SKU
HI987134-02

Turbidity Meter

1.169,00 €
Na zalogi

with Fast Tracker™ Technology, ISO

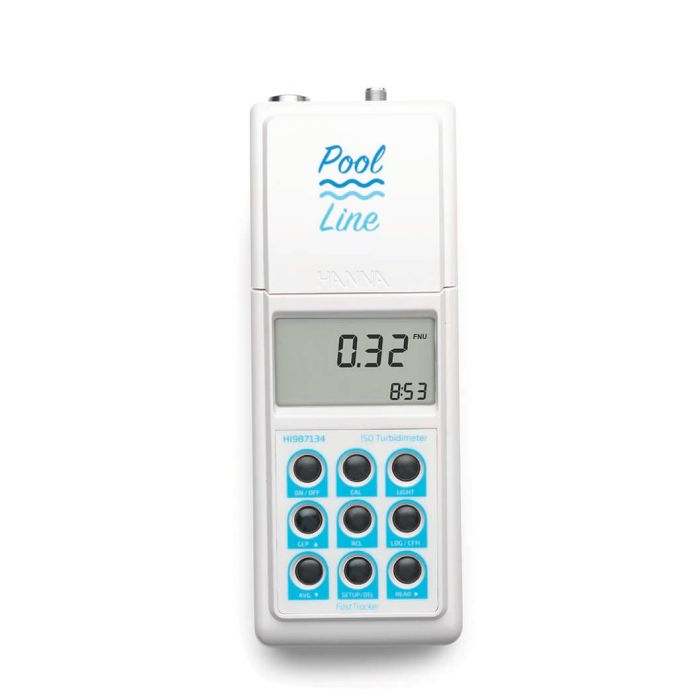

The HI98713 and HI987134 (Pool Line) Precision ISO Turbidity Portable Meters are specially designed for water quality measurements, providing accurate, reliable readings even within low turbidity ranges.

Ratio Measurement Mode

These meters measure turbidity using the ratio method with a 90° and 180° light detector for accurate measurements.



Multiple reading modes

Normal, continuous, or signal averaging easurement reading modes available.



ISO Compliant

Both meters exceed the requirements of ISO 7027 method for turbidity measurements by use of an infrared LED light source.



Calibration

HI98713 and HI987134 feature a powerful calibration function that compensates for variation in light intensity. A two, three, or four-point turbidity calibration can be performed by using the supplied (<0.1, 15, 100 and 750 FNU) standards. Calibration points can be modified if user-prepared standards are used.



Fast Tracker™

For advanced field applications, the HI98713 is equipped with Fast Tracker™ Tag Identification System (T.I.S.) that makes data collecting and management simpler than ever. Fast Tracker™ allows users to record the time and location of a specific measurement or series of measurements using iButton® tags near sampling points for quick and easy readings. Each iButton® tag contains a computer chip with a unique identication code encased in stainless steel.



Backlit Graphic LCD Display

A graphic LCD display provides an easy to understand, user-friendly interface. All messages are in plain text making them easy to read.



AMCO AEPA-1 Primary Turbidity Standard

The AMCO AEPA-1 supplied standards are recognized as a primary standard by the USEPA. These non-toxic standards are made of styrene divinylbenzene polymer spheres that are uniform in size and density. The
standards are reusable and stable with a long shelf life.



GLP Data

Features complete GLP (Good Laboratory Practice) functions that allow traceability of the calibration conditions. Data includes calibration points, date, and time.



Data Logging

Up to 200 measurements can be stored in the internal memory and recalled at any time.


Data Transfer

Logged data can be downloaded to a Windows® compatible PC using the USB or RS232 port and the HI92000 software.





Specifications



Range

0.00 to 1000 FNU

Resolution

0.01 (0.00 to 9.99 FNU); 0.1 (10.0 to 99.9 FNU); 1 (100 to 1000 FNU)

Accuracy

±2% of reading plus 0.1 FNU

Range Selection

automatic

Repeatability

±1% of reading or 0.01 FNU, whichever is greater

Stray Light

< 0.1 FNU

IR Detector

silicon photocell

Light Source

860 nm infrared LED

Lamp Life

greater than 100,000 readings

Method

adaptation of ISO 7027, ratio method with 90° and 180° detector

Measuring Mode

normal, average, continuous.

Turbidity Standards

<0.1, 15, 100 and 750 FNU

Calibration

two, three or four-point calibration

Log Memory

200 records

Serial Interface

USB or RS232

Environment

0 to 50°C (32 to 122°F); RH max 95% non-condensing

Power Supply

1.5V AA alkaline batteries (4) or AC adapter; auto-off after 15 minutes of non-use

Dimensions / Weight

224 x 87 x 77 mm (8.8 x 3.4 x 3.0”) / 512 g (18 oz.)

Ordering Information

HI98713-01 (115V), HI98713-02 (230V), and HI987134-02 (230V) (Pool Line) is
supplied with sample cuvettes and caps (5), calibration cuvettes, silicone oil (HI98703-58),cuvette wiping cloth, batteries, AC adapter, instructions and rugged carrying case
