SKU
BL122-10

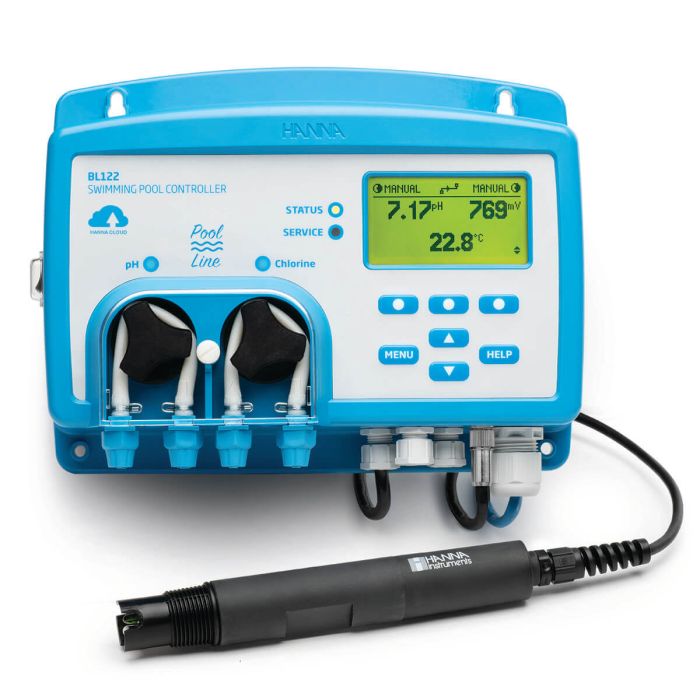

pH/ORP Controller with Hanna Cloud Connectivity

Na zalogi

Designed to maintain constant pH and disinfectant levels in swimming pools, hot tubs, and spas, the BL122 and BL123 offer the added benefit of allowing remote connection and access to devices via the Hanna Cloud web app.

  • Keep track anywhere with Hanna Cloud connectivity.
  • Inline or panel mounted models.
  • Built-in datalogger for compliance monitoring.

Peristaltic Chemical Feed Pumps

Equipped with two peristaltic dosing pumps with replaceable chemical resistant tubing that are proportionally controlled with adjustable flow rates.

Automatic Proportional Pump Control

Adjust the proportional band based on the sensitivity of your process to chemical addition, finetuning the amount of time that the pumps are dosing.

Adjustable Flow Rate

The dosing pump flow rate is adjustable from 0.5 to 3.5L/h, allowing for better control in maintaining a desired set point.



Connectivity

Transfer data to a PC using a flash drive and the USB port or connect via the Ethernet Port to the Hanna Cloud.

Hold Input

Connect a flow switch so that when there is no flow or no power applied to the recirculation pump, the hold circuit will disable the dosing pumps to prevent any dosing when there is no movement of water in the system.

BL123 Analog Outputs

The BL123 controller offers three 4-20 mA outputs that can be disabled or connected to an external recording device. Each of the three measured parameters (pH, ORP, and temperature) can be assigned to an analog output.





Programmable Alarm System

Set low and high alarm levels for all parameters. When an alarm is activated, all dosing will stop to prevent overdosing.



Automatic Logging

Readings are automatically logged every 10 seconds. Logged data includes pH, ORP, and temperature values, last calibration data, setup configuration, and any event data.



 GLP

GLP stores pH/ORP calibration information including date and time for pH/ORP sensors.



Password Protected

Password protection restricts access to calibration, setup, and review of logged data for increased security.



3 Display Modes

The LCD can display all 3 parameters at one time, a 3-second cycle of single parameters, or a real-time graph.



Keep Track Anywhere with Hanna Cloud Connectivity

Hanna Cloud is a web-based application that connects you to measurement devices such as the BL122 and BL123. Measurements and data storage are accessible from your PC, tablet or phone. Measurements, trends, history, device settings, alarms, and messages are transmitted to your “Dashboard” as your instrument measures and controls your process.









Features



Measurement & Graphing

Measurement, alarm, hold and pump status are easily viewable. Use a graph to view trends over the last 12 hours or change the time period. Log history can be transferred as a PDF or .CSV.



Good Laboratory Practices (GLP)

Good Laboratory Practice (GLP) refers to a quality control function used to ensure uniformity of probe calibrations and measurements. GLP data is readily available for increased traceability.

Notifications

Select which notifications you would like to receive. Multiple secondary users may also be added to your device account to monitor measurements and receive email or pop-up messages from your process device.

Specification

SKU BL12x
pH Range 0.00 to 14.00 pH
pH Resolution 0.01 pH
pH Accuracy (@25°C/77°F) ±0.05 pH
pH Dosing proportional with adjustable set point and proportional band; delay to start at power-on and overdosing protection
ORP Range ±2000 mV
ORP Resolution 1 mV
ORP Accuracy (@25°C/77°F) ±5 mV
ORP Dosing proportional with adjustable set point and proportional band; delay to start at power-on and overdosing protection; pH dosing interlocked
Temperature Range -5.0 to 105.0°C (23.0 to 221.0°F)
Temperature Resolution 0.1°C (0.1°F)
Temperature Accuracy (@25°C/77°F) ±1°C (±1.8°F)
Temperature Compensation automatic, -5.0 to 105.0°C (23.0 to 221.0°F) for pH
Calibration pH buffer calibration: automatic, two-point (4.01, 7.01, 10.01 pH) pH process calibration: one-point, manual input
Pump Control automatic and manual modes; adjustable flow rate from 0.5 to 3.5 L/h
Log Feature automatic logging of pH, ORP, and temperature measurements, GLP and events including alarms, errors and power failure; capacity for 60 days with 10 second sampling interval; all data .csv files are transferred by USB flash drive
Alarms high and low with enable/disable option for all parameters; alarm is triggered when 5 consecutive readings are over/under threshold
Alarm System intuitive alert system based on LEDs; alarm filtering options; alarm relay control based on user setup
Password Protection setup, calibration and log recall options features are password protected
Connectivity USB
GLP pH/ORP calibration information including date and time for pH/ORP sensors
Alarm Relay Output SPDT 5A/230 VAC; activated by pH/ORP/temperature selectable alarm conditions
Analog Outputs 4 to 20 mA, sourcing, configurable; output impedance ≤ 500 Ohm; accuracy < 0.5 % FS; galvanically isolated up to 50 V relative to earth ground
Auxiliary Inputs low level in acid/base tank (contact open); low level in chlorine tank (contact open); hold input (contact open)
Digital Probe Input galvanic isolated digital input HI1036-1802 pH/ORP/temperature/matching pin combined probe with DIN waterproof connector
Power Supply 100 — 240 VAC
Power Consumption 10 VA
Environment 0 to 50°C (32-122°F); max 95% RH non-condensing
Dimensions 245 x 188 x 55 mm (73 mm with pumps); 9.6 x 7.4 x 2.2” (2.9” with pumps)
Weight 1700 g (60 oz.)
