Conductivity Controller - BL983317

Na zalogi

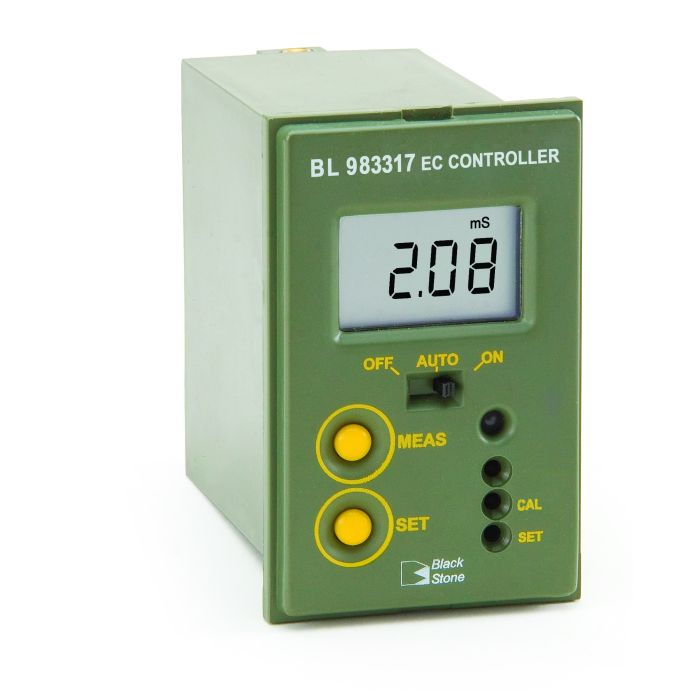

The BL983317 is a compact, panel mounted, process controller for measuring conductivity of a process stream. The device features a large LCD with protective cover. Users may choose from automatic or manual dosing modes. When in automatic mode the dry contact relay is activated when a reading is below the set point. The relay can be used to activate a dosing pump to add chemical until the desired set point is reached. Chemicals that can be dosed include nutrient solutions.
The BL983327 is a closely related product that has the same measurement range but has a relay that is activated when the reading is above the set point.
  • Multicolor LED Indicator
  • Fire Retardant Casing
  • Fire Retardant Casing


Adjustable Dry Contact Dosing Relay

The BL983317 features a dosing relay that is activated when the reading is below a user programmable set point.


Programmable Overdose Protection

For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled.


Relay Control Override

With the flick of a switch the mini controller's relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump.


Multicolor LED Indicator

Multicolor LED indicator allows an operator to quickly check the status of the controller.

  • Green = Meter in measurement mode and reading is above the set point.
  • Orange/Yellow = Reading is below the set point and the relay is active.
  • Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded.




Fuse Protected Dosing Contacts

The relay dosing contact is rated for up to a 2A load and is fuse protected.

Labeled Termination Connections

Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light.




1/2" NPT Male Threaded Amperometric Probe for Mounting In-line*

The BL983317 mini controller uses the HI7632-00 conductivity probe that is available with different cable lengths.

*HI7632-00 is not included and must be ordered separately



Front View

Installation cut-out dimensions are provided as well as outside panel dimensions.




Side View

Adjustable location brackets allow the controller to slide easily and securely into place..




Conductivity Range

0.00 to 10.00 mS/cm


0.01 mS/cm


±2% full scale


manual, with CAL trimmer

Dosing Relay

maximum 2A (fuse protected), 250 VAC, 30 VDC

Dosing Selection

relay activated (contact closed) when the measurement is less than the setpoint

Setpoint adjustable

from 0 to 10 mS/cm

Overtime adjustable

typically from 5 to approximately 30 minutes

Temperature Compensation

automatic from 5 to 50°C (41 to 122°F) with beta =2%/ºC

Power Supply

models “-0”: 12 VDC adapter (included) models “-1”: 115/230 VAC; 50/60Hz


83 x 53 x 99 mm (3.3 x 2.1 x 3.9’’)


models “-0”: 200 g (7.1 oz.) models “-1”: 300 g (10.6 oz.)

Ordering information

BL983317-0 (12 VDC) and BL983317-1 (115/230 VAC) are supplied with mounting brackets, transparent cover and instruction manual.
