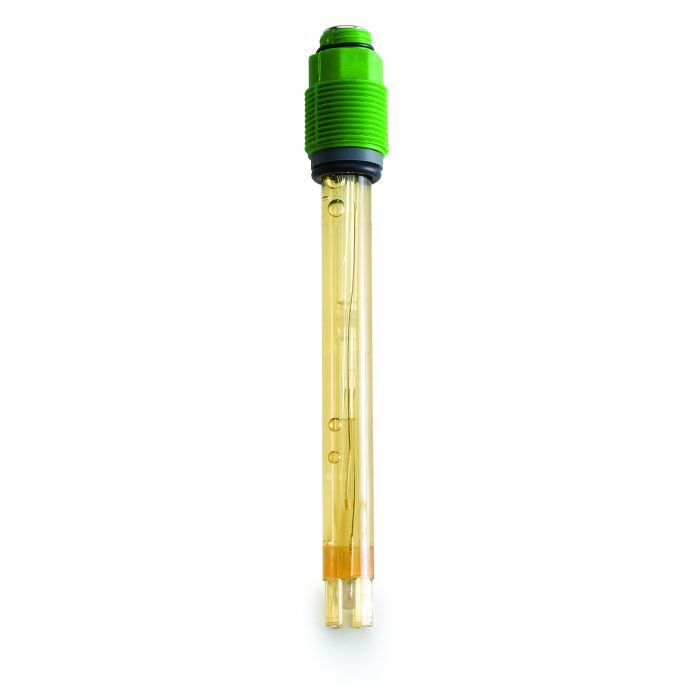

Combination PEI-body pH Electrode - General Purpose, T-type Connector - HI1210T
- pH electrode with renewable cloth junction.
- General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
- Built for everyday, demanding use in industrial applications.
Combination electrode
Single combined electrode that has both sensing and reference components for added convenience.
PEI body
PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.
General purpose glass formulation
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
Double junction technology with gel polymer filling
Ensure long electrode life and reliability in harsh environments.
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Specifications
|
Body Material |
PEI |
|
Junction/Flow rate |
Double, cloth |
|
Electrolyte |
Gel |
|
Max. pressure |
3 bar (43.5 psi) |
|
Glass Type |
(-15 to 80°C/ 5 to 176°F) |
|
Body Length / Overall Length |
140mm |
|
Temperature sensor |
No |
|
Amplifier |
No |
|
Connection |
T-Type |
